Choosing the right 2026 Ford F-150® starts with the engine, and you have six distinct options to weigh. Five gas engines and a full hybrid engine cover efficient daily driving, hauling, and off-road performance, with twin-turbocharged EcoBoost® choices and the electrified PowerBoost® full hybrid among them. This 2026 Ford F-150 engine and towing guide from the team at James River Ford compares engine specifications, towing and payload capacities, and engine availability by trim to help you match the right powertrain to your specific needs.
Browse our inventory at James River Ford in Ozark, MO, and schedule a test drive to feel the difference for yourself. Be sure to look over our lease and finance offers before you decide. If you have any questions, contact us online or call us at (417) 551-6437.
Navigate to a specific research section to learn more:
Whether you’re hauling equipment to the jobsite or towing the boat to the lake for an extended weekend getaway, the 2026 Ford F-150 has a powertrain matched to the task. Five gas engines and one full hybrid complete the six-engine lineup, letting you weigh efficiency, output, and pulling power against your driving needs. Two of those engines are tuned specifically for the off-road Raptor®.
The 2.7L EcoBoost V6 engine is the standard powertrain across the lower trims, where its twin-turbocharged design makes 325 horsepower while balancing daily efficiency with capable light-duty towing. It is the everyday workhorse of the bunch if you want turbocharged punch without stepping up to a larger engine.
The 5.0L Ti-VCT V8 engine is the naturally aspirated V8 of the group, producing 400 horsepower with the feel and sound of a traditional eight-cylinder. It is the choice if you’d rather skip a turbocharged V6 for something more classic.
The 3.5L EcoBoost V6 engine delivers 382 horsepower and carries the highest tow rating of the six, pulling up to 13,500 pounds when properly equipped. Its twin-turbocharged setup builds strong low-end torque for getting a heavy trailer moving from a stop.
Pairing the V6 with an electric motor, the 3.5L PowerBoost full hybrid V6 engine makes 420 horsepower as the sole hybrid of the six. Electric assist gives it the highest fuel economy of the group, and it unlocks Pro Power Onboard® with an available 7.2 kW output for running tools and gear off the truck.

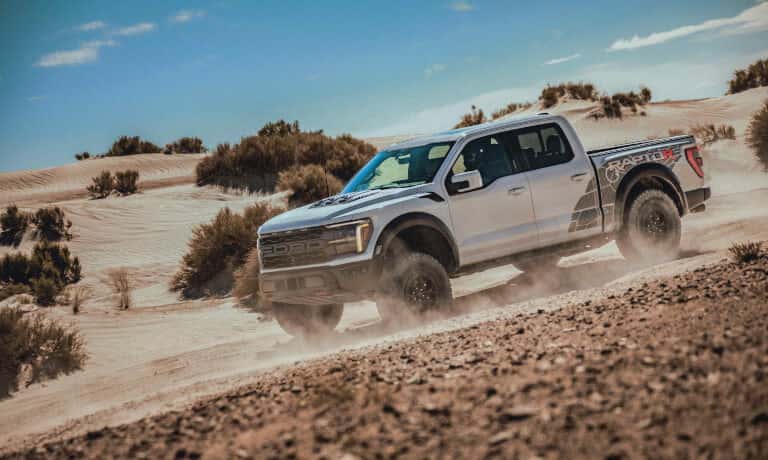

Reserved for the F-150 Raptor, the high-output 3.5L EcoBoost V6 engine is a performance-tuned version of the standard EcoBoost V6 rated at 450 horsepower. It is built for high-speed desert driving and trail running rather than maximum towing.
The 5.2L supercharged V8 engine sits at the top of the range, exclusive to the F-150 Raptor with the Raptor R™ Equipment Group package. As the largest-displacement engine in the lineup, it pairs that size with a supercharger to produce 720 horsepower, the most of any F-150.
See the following engine specifications for more details.
| Engine | Horsepower | Torque | Transmission | Drivetrain | MPG (City/Hwy) |
|---|---|---|---|---|---|
| 2.7L EcoBoost V6 | 325 HP | 400 lb.-ft. | Ten-speed automatic | 4×2 / 4×4 | 19 / 25 |
| 5.0L Ti-VCT V8 | 400 HP | 410 lb.-ft. | Ten-speed automatic | 4×2 / 4×4 | 16 / 24 |
| 3.5L EcoBoost V6 | 382 HP | 500 lb.-ft. | Ten-speed automatic | 4×2 / 4×4 | 17 / 25 |
| 3.5L PowerBoost full hybrid V6 | 420 HP | 570 lb.-ft. | Ten-speed automatic | 4×2 / 4×4 | 23 / 25 |
| High-output 3.5L EcoBoost V6 | 450 HP | 510 lb.-ft. | Ten-speed automatic | 4×4 | 14 / 18 |
| 5.2L supercharged V8 | 720 HP | 640 lb.-ft. | Ten-speed automatic | 4×4 | 10 / 15 |

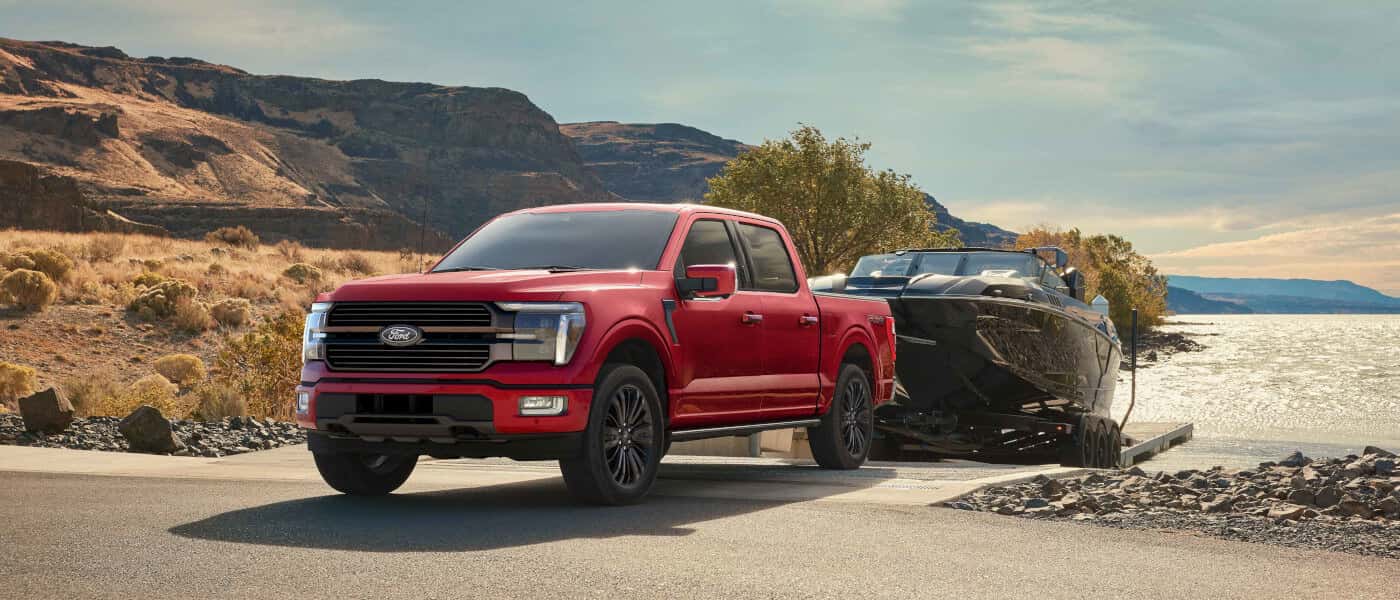

At the top of the lineup, the 2026 Ford F-150 with the 3.5L EcoBoost V6 engine tows up to 13,500 pounds when properly equipped. The 3.5L EcoBoost V6 engine also carries the highest payload capacity, at 2,440 pounds. Reaching that maximum takes a SuperCrew® cab, a 6.5-foot bed, a 4×4 drivetrain, the Tow/Haul Package, and the optional Max Tow Axle. Available trailering technology helps with the challenging maneuvers, including Pro Trailer Backup Assist™, Pro Trailer Hitch Assist™, and an integrated trailer brake controller.
See the following towing and payload specifications for more details.
| Engine | Max. Towing Capacity | Max. Payload Capacity |
|---|---|---|
| 2.7L EcoBoost V6 | 8,400 lbs. | 1,775 lbs. |
| 5.0L Ti-VCT V8 | 12,800 lbs. | 2,235 lbs. |
| 3.5L EcoBoost V6 | 13,500 lbs. | 2,440 lbs. |
| 3.5L PowerBoost full hybrid V6 | 12,400 lbs. | 1,740 lbs. |
| High-output 3.5L EcoBoost V6 | 8,200 lbs. | 1,405 lbs. |
| 5.2L supercharged V8 | 8,700 lbs. | 1,410 lbs. |
Engine availability shifts as you move through the 2026 Ford F-150 trims. The everyday gas engines anchor the mainstream trims, the full hybrid spans the middle of the range, and the off-road Raptor carries the two engines reserved for it alone.
See the following engine availability for more details.
| Trim | 2.7L EcoBoost V6 | 5.0L Ti-VCT V8 | 3.5L EcoBoost V6 | 3.5L PowerBoost full hybrid V6 | High-output 3.5L EcoBoost V6 | 5.2L supercharged V8 |
|---|---|---|---|---|---|---|
| XL | ✓ | ✓ | ✓ | |||
| STX® | ✓ | ✓ | ✓ | |||
| XLT | ✓ | ✓ | ✓ | ✓ | ||
| Lariat® | ✓ | ✓ | ✓ | |||
| King Ranch® | ✓ | ✓ | ||||
| Platinum® | ✓ | ✓ | ||||
| Tremor® | ✓ | ✓ | ||||
| Raptor | ✓ | ✓ |
The new Ford F-150 backs its engine lineup with the towing muscle, trim range, and everyday features that make it a versatile truck. Keep exploring to see how it all comes together before you settle on your powertrain.
When you’re ready to get behind the wheel, browse our inventory of new Ford F-150 trucks at James River Ford in Ozark, MO. Have any questions first? Contact us online or call (417) 551-6437, and our team will be happy to help.
